Radio Group (ALPHA)

Alpha feature: invite only

Responsive Widgets are in alpha and available by invitation only on Business and Enterprise plans. Behavior and properties may change. To request access, open a support ticket and name the feature Responsive Widgets (ALPHA).

The Radio Group widget shows a list of radio buttons under one label. Users pick exactly one option. Use it for a short list where all choices should stay visible, for example a shirt size.

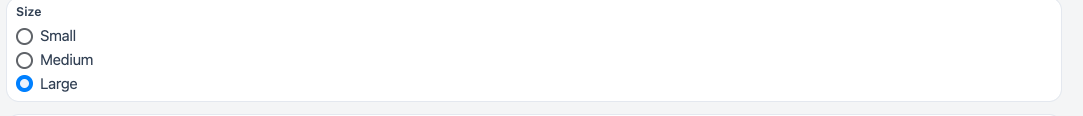

Radio Group widget in a Responsive app
Radio Group widget

Widget type: WDS_RADIO_GROUP_WIDGET

Content properties​

These properties appear in the Content tab of the property pane.

Data​

Options array<object>​

Sets the radio buttons. Each option has a label (string) and a value (string or number). Values must be unique. You can add options in the property pane or switch to JS to bind an array.

Default value:

[
{ "label": "Small", "value": "S" },
{ "label": "Medium", "value": "M" },
{ "label": "Large", "value": "L" }
]

Default selected value string​

Sets the option that is selected when the widget loads. Enter the option's value. To use a number value, write it in {{ }}, for example {{1}}. Default: L.

Orientation string​

Sets how the radio buttons are laid out. Options:

  • Horizontal: in a row.
  • Vertical: in a column.

Default: Vertical.

Label​

Text string​

Sets the label shown above the group. Default: Size.

Tooltip string​

Shows help text or details next to the label.

Validations​

Required boolean​

Makes a selection mandatory. When on and no option is selected, the widget shows the message "Please select an option." Default: off.

General​

Visible boolean​

Controls whether the widget is visible when the app runs. Default: on.

Disabled boolean​

Stops users from changing the selection. Default: off.

Animate loading boolean​

Shows a loading animation while the widget's data loads. Default: on.

Style properties​

These properties appear in the Style tab of the property pane.

Custom styling​

These settings are in the Custom styling section, at the end of the Style tab. An empty setting uses the theme value. For theme colors, dark mode, and the rules for custom CSS, see Custom styling.

Accent color string​

Builds the hover, pressed, focus, and text colors of this widget from one color, in light and dark mode. Lists and menus that the widget opens use them too. Empty means the accent of the nearest container that sets one, or the theme accent.

Custom CSS string​

Adds plain CSS to this widget. Rules apply only inside the widget, and & is the box around the widget, its label included, not the part inside it. To style an inner part, use its element selector, for example button or input. You cannot bind this property.

Reference properties​

Reference properties let you read the widget's state in bindings and code, for example {{RadioGroup1.isVisible}}. You cannot set them directly.

isVisible boolean​

Shows whether the widget is visible.

Example:

{{RadioGroup1.isVisible}}

options array<object>​

Holds the options set in Options.

Example:

{{RadioGroup1.options}}

selectedOptionValue string​

Holds the value of the selected option. If the options use number values, it holds a number.

Example:

{{RadioGroup1.selectedOptionValue}}

isRequired boolean​

Shows whether Required is on.

Example:

{{RadioGroup1.isRequired}}

Methods​

Methods let you change the widget's properties from code, for example in a JS Object.

setVisibility (param: boolean): Promise​

Shows or hides the widget.

Example:

RadioGroup1.setVisibility(true)

setDisabled (param: boolean): Promise​

Turns the disabled state on or off.

Example:

RadioGroup1.setDisabled(false)

setData (param: array): Promise​

Sets the options.

Example:

RadioGroup1.setData([{ label: "Yes", value: "Y" }, { label: "No", value: "N" }])

Events​

onSelectionChange​

Runs when the user selects a different option.
