Signature (ALPHA)

Alpha feature: invite only

Responsive Widgets are in alpha and available by invitation only on Business and Enterprise plans. Behavior and properties may change. To request access, open a support ticket and name the feature Responsive Widgets (ALPHA).

The Signature widget gives users a pad to draw a signature. It saves the drawing as a PNG data URI. Use it for approvals, consent forms, and delivery confirmations.

Widget type: WDS_SIGNATURE_WIDGET

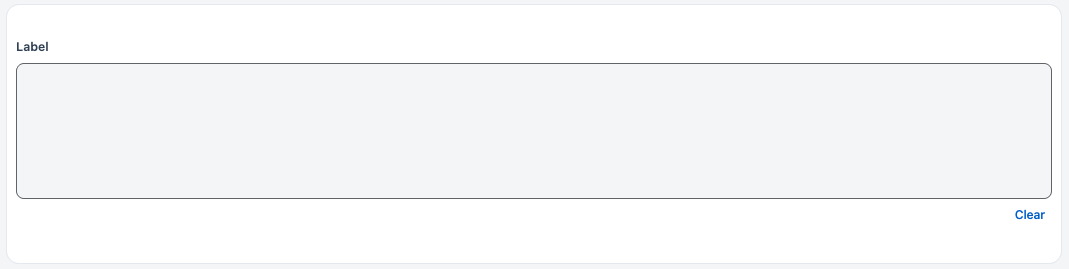

Signature widget in a Responsive app
Signature widget

Content properties​

These properties appear in the Content tab of the property pane.

Label​

Text string​

Sets the label of the widget. Default: Label.

Validations​

Required boolean​

Makes a signature required. When it is on and the pad is empty, isValid is false. Default: off.

General​

Tooltip string​

Shows help text or details next to the label.

Pen color string​

Sets the color of the pen as a hex string, such as #2E3D49. Takes #rrggbb or #rrggbbaa. Leave it empty to use the theme's text color.

Background color string​

Sets the background of the pad as a hex string, such as #FFFFFF. Takes #rrggbb or #rrggbbaa. The saved PNG includes this background. Leave it empty for a transparent background.

Visible boolean​

Controls whether the widget is visible. Default: on.

Disabled boolean​

Stops users from drawing on the pad. Default: off.

Animate loading boolean​

Controls the loading animation of the widget. Default: on.

Events​

onSignatureChange​

Sets the action that runs when the signature changes. See Events.

Style properties​

These properties appear in the Style tab of the property pane.

Custom styling​

These settings are in the Custom styling section, at the end of the Style tab. An empty setting uses the theme value. For theme colors, dark mode, and the rules for custom CSS, see Custom styling.

Custom CSS string​

Adds plain CSS to this widget. Rules apply only inside the widget, and & is the widget itself. You cannot bind this property.

Reference properties​

Reference properties let you read the widget's state in bindings and code, for example {{Signature1.isVisible}}. You cannot set them directly.

value string​

Holds the signature as a PNG data URI. It is empty when the pad is empty.

Example:

{{Signature1.value}}

isValid boolean​

Shows whether the widget is valid. If Required is on, it is true only when the pad has a signature. If Required is off, it is always true.

Example:

{{Signature1.isValid}}

isVisible boolean​

Shows whether the widget is visible.

Example:

{{Signature1.isVisible}}

isDisabled boolean​

Shows whether the widget is disabled.

Example:

{{Signature1.isDisabled}}

Methods​

Methods let you change the widget's properties from code, for example in a JS Object.

You cannot set a signature from code. Only a user can draw one. To clear the pad, use resetWidget("Signature1").

setVisibility (param: boolean): Promise​

Shows or hides the widget.

Example:

Signature1.setVisibility(false)

setDisabled (param: boolean): Promise​

Turns the widget on or off.

Example:

Signature1.setDisabled(true)

Events​

onSignatureChange​

Runs when a user finishes a stroke or clears the signature. Read the new value in {{Signature1.value}}.
