Zone (ALPHA)

BusinessEnterprise
Alpha feature: invite only

Responsive Widgets are in alpha and available by invitation only on Business and Enterprise plans. Behavior and properties may change. To request access, open a support ticket and name the feature Responsive Widgets (ALPHA).

A Zone is a layout container that lives inside a Section. It holds your widgets and stacks them in rows. Use Zones to group related widgets, such as the fields of a form or a set of stats. Turn on Use as a form to collect the values of the input widgets inside the Zone.

Widget type: ZONE_WIDGET

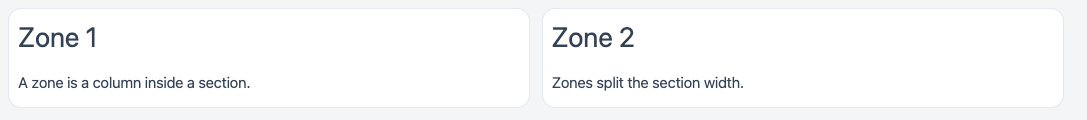

Zone widget in a Responsive app
Zone widget

How a Zone arranges its content​

  • A Zone sits inside a Section, next to the other Zones in that Section.
  • Each Zone takes a share of the Section's 12 columns. Set the share with the Section Split controls.
  • Inside a Zone, widgets stack from top to bottom in rows.
  • A row holds either one large widget, such as a Table, or several small widgets side by side, such as inputs and buttons. A row cannot mix the two.
  • On small screens (narrower than 480px), each Zone takes the full width of the Section, so the Zones stack. This applies in preview and in the deployed app.

Content properties​

These properties appear in the Content tab of the property pane.

Section Split​

These controls act on the Section that holds this Zone. They are the same controls you see when you select the Section.

Zone widths (splitter)​

A visual control with no label. It shows the 12 columns of the parent Section. Drag it to share those 12 columns between the Zones.

Zones​

Sets how many Zones the parent Section has. A Section holds up to 4 Zones.

General​

Use as a form boolean​

Treats the Zone as a form. When this is on:

  • The Zone collects the values of its direct child widgets into the data reference property.
  • The Zone sets hasChanges to true when a user has changed any of those widgets.
  • Buttons inside the Zone can use their form options, such as Disable when form invalid and Reset form on success.

Off by default. When you turn it off, data is cleared and hasChanges goes back to false.

Scroll contents boolean​

Caps the Zone height at Max height (px) and lets users scroll the content inside. Off by default.

Max height (px) number​

The highest the Zone can grow, in pixels, when Scroll contents is on. The value must be 100 or more. The placeholder shows 400.

This property shows only when Scroll contents is on.

Visible boolean​

Controls whether the Zone shows in the app. On by default.

Animate loading boolean​

Shows a loading animation while the Zone loads. On by default.

Style properties​

These properties appear in the Style tab of the property pane.

General​

Visual separation boolean​

Gives the Zone an elevated background and borders from the theme. Use it to set this Zone apart from the other Zones in the Section.

On by default. It is off by default for a Zone inside a Modal or a Sheet.

Reference properties​

Reference properties let you read the widget's state in bindings and code, for example {{Zone1.isVisible}}. You cannot set them directly.

isVisible boolean​

Shows whether the Zone is visible.

Example:

{{Zone1.isVisible}}

data object​

Holds the values of the Zone's direct child widgets when Use as a form is on. Each key is a widget name. Each value is that widget's current value.

  • Only widgets that have a value are included, such as inputs. Buttons and text widgets are left out.
  • Empty values (null or undefined) are left out.
  • Only direct children count. Widgets nested in another container inside the Zone are not included.

When Use as a form is off, data is undefined.

Example:

{{Zone1.data}}
// { "NameInput": "Ada", "EmailInput": "ada@example.com" }

hasChanges boolean​

Is true when a user has changed at least one direct child widget. Works only when Use as a form is on. Otherwise it is false.

Example:

{{Zone1.hasChanges}}

Methods​

Methods let you change the widget's properties from code, for example in a JS Object.

setVisibility (param: boolean): Promise​

Shows or hides the Zone.

Example:

Zone1.setVisibility(false)
