Table

This page provides information on using the Table widget to display data in tabular format, trigger actions based on user interaction, and work with paginated data sets of any size.

Using the Table Widget

Content properties

These properties are customizable options present in the property pane of the widget, allowing users to modify the widget according to their preferences.

Data

Table data array<object>

Allows you to connect the Table widget to your datasource. To connect your datasource to the Table widget, click on Connect data and select your datasource or query.

If you don't have a query, you can choose your datasource, select the desired table or collection, and specify the searchable property. Appsmith would automatically generate a query for you, enabling features such as server-side pagination, search capability, and the ability to edit and add new rows in the table.

Additionally, you can use JavaScript by clicking on JS to write bindings for the table data. The data should be specified as an array of objects, where each object in the array represents a row, and the properties of the object represent the columns in the table. In the given example format, the table has three columns: step, task, and status.

Expected data structure:

[
{
"step": "#1",
"task": "Drop a table",
"status": "approved"
},
{
"step": "#2",
"task": "Create a query fetch_users with the Mock DB",
"status": "pending"
},
{
"step": "#3",
"task": "Bind the query using => fetch_users.data",
"status": "pending"
}
]

You can dynamically generate a table by fetching data from queries or JavaScript functions and binding the response to the Table Data property. For example, if you have a query named fetchData, you can bind its response using:

Example:

{{fetchData.data}}

If the retrieved data is not in the desired format, you can use JavaScript to transform it before passing it to the Table widget, like:

Example:

{{fetchData.data.users.map((user) => {
return {
name: user.name,
email: user.email
};
});
}}

Columns array

The Columns property is automatically populated based on the Table Data. To access the column settings, you can click on the gear icon ⚙️ in the properties pane. This would enable you to edit existing column properties, add new custom columns, rearrange the columns, and hide columns.

Learn more about Column.

Editable boolean

The Editable property, available within the Columns property, is a checkbox property that allows users to modify specific fields or cells in the table. By enabling inline editing and marking columns as editable, users can update the data directly from the UI by double-clicking on the desired cell.

Learn more about Inline editing.

Update mode string

Determines how edited cells are saved in the table.

Options:

  • Single row: Cells can be saved using the Save/Discard column buttons.
  • Multi row: Cells can be saved by using an onSubmit event of the column or through an external button widget.

Primary key column string

Allows you to assign a unique column that helps maintain selectedRows and triggeredRows based on its value. This property also affects the performance of caching the dataset for quicker loading and access.

Pagination

Show pagination boolean

Determines whether the pagination feature is displayed in the table header, allowing users to navigate through different pages of the table.

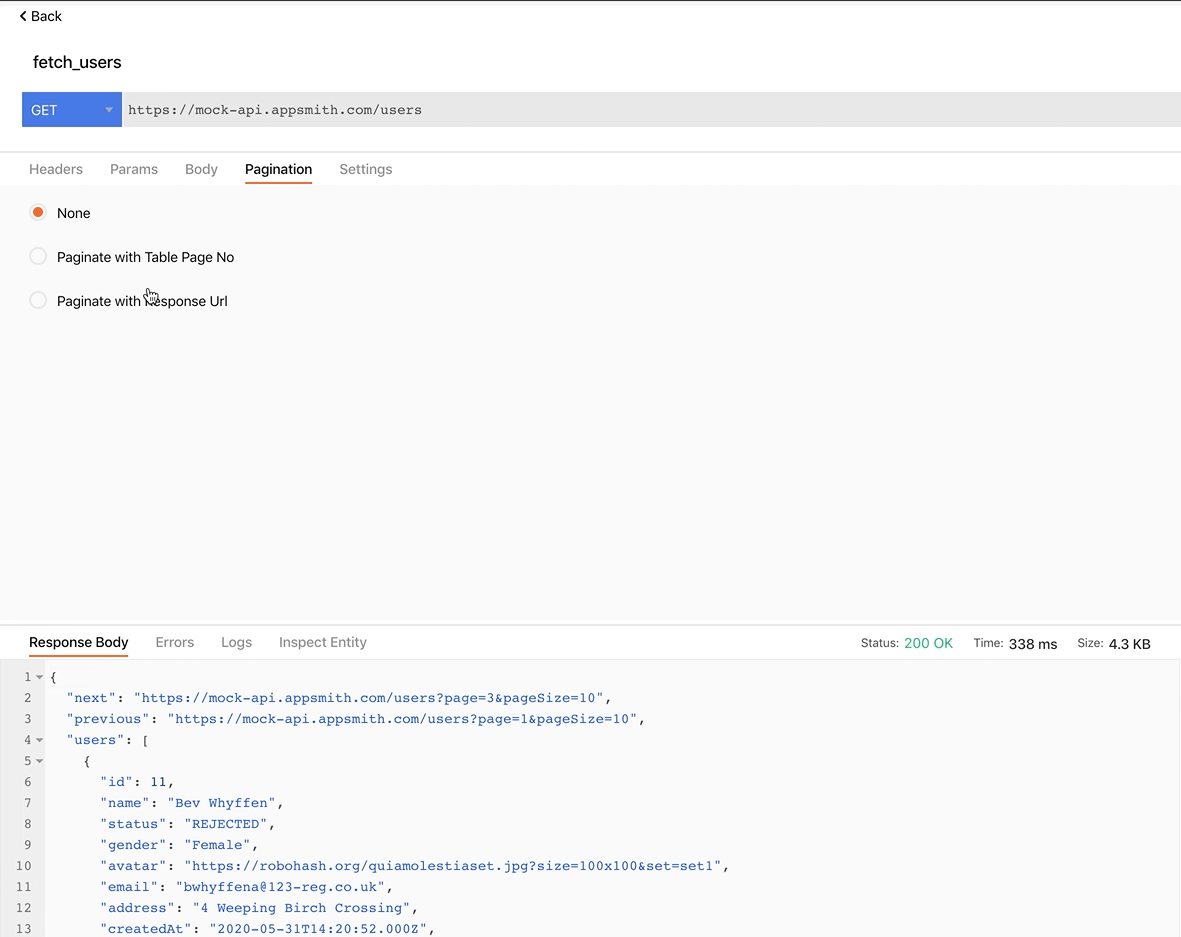

Server side pagination boolean

Allows you to implement pagination by limiting the number of results fetched per query request.

Appsmith can handle query responses of up to 5 MB. To display large datasets and optimise performance, use server-side pagination. It can be implemented using Offset-based-pagination or Cursor-based pagination.

For more information on how to fetch paginated data, see Setup Server-Side Pagination.

Total Records number

It is a number value that is displayed in the table header to inform the user about the total number of records in the table. This property is only visible when Server Side Pagination is enabled.

For instance, you can create a Count query to retrieve the total number of records from your datasource. You can then call this query in the Total Records property using the, like:

Example:

{{Total_record_query.data[0].count}}

onPageChange

Sets the actions that would be triggered whenever the user navigates to a different page of the table, either by clicking on the pagination buttons.

onPageSizeChange

Sets the actions to be executed when the height of the table is changed. This event is typically triggered by developers working on the app and not by end users. It can be useful, for example, to dynamically set a limit in your query based on the new table height.

Search & filters

Allow searching boolean

When enabled, the search bar is displayed, allowing users to search for specific data within the table.

Client side search boolean

Determines the search behavior of the search bar in the table header. When enabled, the search bar would only search within the data that is currently loaded in the table. If disabled, the search bar would search across the entire data set.

Default search text string

Allows you to set the default search query for the search bar in the table header.

onSearchTextChanged

Allows you to specify the action to be executed when the user enters a search text in the table's search bar. Learn more about Server-side searching.

Allow filtering boolean

Controls the visibility of the Filters button, which is located in the table header. The button allows users to apply filters to the table data when enabled.

Row selection

Default selected row number/array

Sets which rows are selected in the table by default. When Enable multi-row selection is turned on, this setting expects an array of numbers corresponding to the indices of the selected rows. Otherwise, it expects a single number.

Enable multi-row selection boolean

Enables the selection of multiple rows in a table simultaneously. When enabled, the selected rows can be accessed through the {{Table1.selectedRows}} reference property.

onRowSelected

Sets the action to be executed when the user selects one or more rows in the table.

Sorting

Column sorting boolean

Controls whether the columns in the table can be sorted by the user. When enabled, users can click on the column headers to sort the table rows based on the values in that column. This feature is only available in View mode.

onSort

Allows you to specify the action to be executed when the user sorts the data in the table.

Adding a row

Allow adding a row boolean

Adds a button to the table that allows users to add new rows of data. Users can input data in editable columns, and you can use the onSave event to update the table's data source and save the changes made by the user.

Learn more about Inline editing.

onSave

Triggered when the user clicks the save button for a new or existing row in the table.

onDiscard

Triggered when the user clicks the discard button for a new or existing row in the table.

Default values string

Allows you to specify the values that would be automatically populated in a new row when a user starts creating it. It expects an object with the same keys as the columns in the existing table data.

General

Visible boolean

Controls the visibility of the widget. If you turn off this property, the widget would not be visible in View Mode. Additionally, you can use JavaScript by clicking on JS next to the Visible property to conditionally control the widget's visibility.

For example, if you want to make the widget visible only when the user selects "Yes" from a Select widget, you can use the following JavaScript expression:

{{Select1.selectedOptionValue === "Yes"}}

Animate Loading boolean

This property controls whether the widget is displayed with a loading animation. When enabled, the widget shows a skeletal animation during the loading process. Additionally, you can control it through JavaScript by clicking on the JS next to the property.

Allow download boolean

Controls the visibility of the Download button in the table header. When enabled, users can download the table data as a .csv file or Excel file by clicking on the button. For more information on how to download data in chunks, see Download Table Data.

Allow column freeze boolean

When enabled, a dropdown is displayed in the header cells of the columns, allowing users to freeze or unfreeze columns as needed.

CSV separator string

Allows you to specify the separator character to use for formatting the downloaded .csv file. This property is applicable only when the Allow Download property is enabled. By default, the separator character is set to , (comma).

Style properties

Style properties allow you to change the look and feel of the widget.

General

Default Row Height string

Sets the height of the row in the table.

Options:

  • Short
  • Default
  • Tall

Text formatting

Text Size string

Sets the size of the text. Additionally, the text size can be programmatically modified using JavaScript functions.

Emphasis string

Enables you to select a font style for the widget, such as bold or italic. Additionally, the font style can be programmatically modified using JavaScript functions.

Text Align string

Sets the horizontal alignment of the text within the cells.

Options:

  • Left
  • Center
  • Right

Vertical alignment string

Sets the vertical alignment of the cell contents within the cells.

Options:

  • Top
  • Center
  • Bottom

Color

Cell Background Color string

Sets the background color of the table cells. Additionally, the cell color can be programmatically modified using JavaScript functions.

For example, lets say you have a column named status that reflects approved and pending values. You can set the color for these values using the following expression in the Cell Background property:

{{currentRow.status === "approved" ? "#22c55e" : "#facc15"}}

If you want to keep the same background color for an entire row, you can use the same custom style expression in each column Cell Background property.

Text Color string

Sets the color for the text in the table. Additionally, the text color can be programmatically modified using JavaScript functions.

Background Color string

Sets the background color of the widget, specified as a CSS color value. It can also be manipulated programmatically using the JavaScript functions.

Border color string

Sets a color for the border, specified as a CSS color value. It can also be manipulated programmatically using the JavaScript functions.

Border and shadow

Cell Borders string

Sets the border configuration for the cells of the table.

Options:

  • Default
  • No borders
  • Horizontal borders only

Border radius string

Applies rounded corners to the outer edge of the widget. If JavaScript is enabled, you can specify valid CSS border-radius to adjust the radius of the corners.

Box Shadow string

This property adds a drop shadow effect to the frame of the widget. If JavaScript is enabled, you can specify valid CSS box-shadow values to customize the appearance of the shadow.

Border color string

Sets the color of the widget's borders, specified as a CSS color value. Additionally, the border color can be programmatically modified using JavaScript functions.

Border Width number

Sets the thickness of the borders of the widget.

Reference properties

Reference properties are properties that are not available in the property pane but can be accessed using the dot operator in other widgets or JavaScript functions. They provide additional information or allow interaction with the widget programmatically. For instance, to get the visibility status, you can use Table1.isVisible.

selectedRow object

Contains the data of the row selected by the user. It's an empty object if no row is selected.

Example:

//To access the entire selected row:
{{Table1.selectedRow}}

//To access a specific cell value, such as the email field:
{{Table1.selectedRow.email}}

selectedRows array<object>

Contains an array of rows selected by the user when multi-select is enabled. It's [null] if no row is selected.

Example:

//To access the array of selected rows:
{{Table1.selectedRows}}

//To access a specific cell value in the selected rows, such as the email field of the first selected row:
{{Table1.selectedRows[0].email}}

triggeredRow object

When a user interacts with an actionable item (like a button) in a row, triggeredRow fetches the data of that column.

Example:

//To access the entire triggered row:
{{Table1.triggeredRow}}

//To access a specific cell value, such as the email field:
{{Table1.triggeredRow.email}}

For example, when using Datepicker if the date is in ISO format and you want to display it in DD/MM/YYYY format, then you can achieve this by binding the Table data to the Default date and changing the display format through the Date format property.

isVisible boolean

Reflects whether the widget is visible or not.

Example:

{{Table1.isVisible}}

sortOrder object

Reflects the current column sort criteria. For example, if table rows are being sorted by the value of column id in ascending order, this property contains {"column": "id", "order": "asc"}.

Example:

{{Table1.sortOrder}}

tableData array<object>

Contains all the table data in JSON format.

Example:

{{Table1.tableData}}

selectedRowIndex number

Contains the index of the row selected by the user. Not applicable when multiple rows are selected.

Example:

{{Table1.selectedRowIndex}}

selectedRowIndices array

Contains an array of the index of the rows selected by the user. Not applicable when multi-row selection is turned off.

Example:

{{Table1.selectedRowIndices}}

filteredTableData array<object>

Contains the data of the rows left after applying any selected filters, sort rule, or search terms.

Example:

{{Table1.filteredTableData}}

pageNo number

Contains the current page number that the user is on. APIs can use it for pagination.

Example:

{{Table1.pageNo}}

pageOffset number

Contains a calculated value to represent how many records to skip when using Server-side pagination. Use this value in your query to fetch the correct set of results.

Example:

{{Table1.pageOffset}}

pageSize number

Contains the number of rows that can fit inside a page of the table. Changes along with the height & row height of the table.

Example:

{{Table1.pageSize}}

searchText string

Contains the search text entered by the user in the Table.

Example:

{{Table1.searchText}}

isAddRowInProgress boolean

Indicates whether a new row is currently being added to the table.

Example:

{{Table1.isAddRowInProgress}}

newRow object

Contains data related to the newly added row.

Example:

{{Table1.newRow}}

nextPageVisited boolean

Indicates whether the next page of data has been visited by the user.

Example:

{{Table1.nextPageVisited}}

previousPageVisited boolean

Indicates whether the previous page of data has been visited by the user.

Example:

{{Table1.previousPageVisited}}

tableHeaders array<object>

Indicates whether the table headers are visible.

Example:

{{Table1.tableHeaders}}

totalRecordsCount number

Indicates the number of pages in server-side pagination.

Example:

{{Table1.totalRecordsCount}}

updatedRow object

Contains data related to the recently updated added row.

Example:

{{Table1.updatedRow}}

updatedRows array<object>

Contains data related to updated rows.

Example:

{{Table1.updatedRows}}

triggeredRowIndex number

An index property that indicates the row index of the table that has been triggered.

Example:

{{Table1.triggeredRowIndex}}

updatedRowIndices array

Refers to an array of indices corresponding to the rows that have been updated.

Example:

{{Table1.updatedRowIndices}}

Methods

Widget property setters enables you to modify the values of widget properties at runtime, eliminating the need to manually update properties in the editor.

These methods are asynchronous and return a Promise. You can use the .then() block to ensure execution and sequencing of subsequent lines of code in Appsmith.

setVisibility (param: boolean): Promise

Sets the visibility of the widget.

Example:

Table1.setVisibility(true)

setData (param: array< object >): Promise

Sets the data to be displayed in the Table widget.

Example:

Table1.setData([{ name: 'John', age: 36 }, { name: 'Jane', age: 28 }])

setSelectedRowIndex (param: number): Promise

This method allows you to programmatically select a single row in the Table.

Example:

Table1.setSelectedRowIndex(2)

setSelectedRowIndices (param: [?]): Promise

This method allows you to programmatically select multiple rows in the Table. It is available when the Enable multi-row selection property is enabled.

Example:

{{Table1.setSelectedRowIndices([1,2,5,8])}}
